STERILIZATION MONITORING SOLUTIONS
Bowie-Dick Test Packs | Autoclave Air Removal & Steam Validation
Single-use diagnostic indicator packs engineered to verify air removal and uniform steam penetration in pre-vacuum (Class B) steam sterilizers per EN 285 & ISO 11140-4 standards across CSSDs, hospitals, and pharmaceutical manufacturing.
STERILIZER DIAGNOSTICS

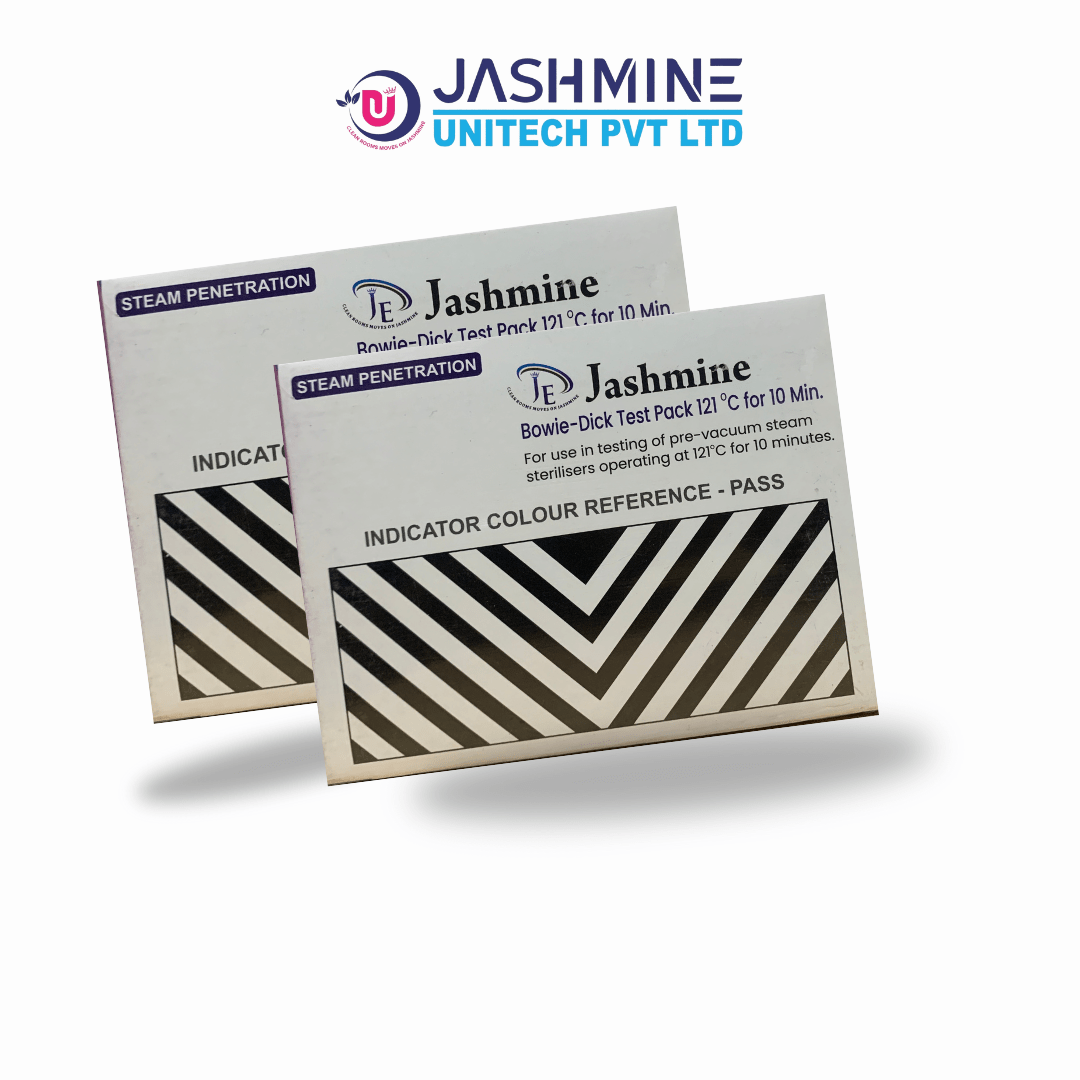

What Is a Bowie-Dick Test Pack?
A Bowie-Dick test pack is a single-use diagnostic device run in an empty pre-vacuum (dynamic-air-removal) steam sterilizer to confirm that air has been adequately removed from the chamber and that steam penetrates uniformly before processing actual loads.
The pack contains a sensitive chemical indicator sheet that changes color uniformly when exposed to saturated steam under correct vacuum and temperature conditions (typically 134°C for 3.5 minutes). Any trapped air pockets show up as an incomplete or patchy color change—providing immediate detection of sterilizer failure.
At Jashmine Unitech, every batch of Bowie-Dick test packs is quality-checked against EN 285 and ISO 11140-4 standards to ensure accurate, consistent performance across critical healthcare and pharmaceutical facilities.
Detect Air Entrapment
Trapped air pockets from faulty vacuum pumps, door gasket leaks, or clogged drains prevent steam penetration, leaving load contents non-sterile.
Prevent False Sterility
Autoclave cycle parameters may show a completed cycle even when steam failed to reach wrapped surgical loads. Bowie-Dick packs catch mechanical failures before load release.
Audit & Standard Compliance
Mandatory daily testing before the first load of the day per NABH, JCI, Schedule M, EN 285, and ISO 11140 compliance guidelines.
Single-Use Disposable Test Packs
Pre-assembled porous test pack body containing a sealed chemical indicator sheet. Ready to place directly into the sterilizer chamber without manual towel folding or assembly. Eliminates human error and is the standard choice for CSSDs, hospital ORs, and pharmaceutical plants.
Reusable Test Pack Holder Systems
Features a durable, heat-resistant outer PTFE or composite holder paired with replaceable single-use indicator sheets. Reduces ongoing per-test material cost while maintaining full ISO 11140-4 compliance for high-volume healthcare networks.
Bowie-Dick Test Packs vs Alternative Verification Methods
| Comparison Criteria | Bowie-Dick Test Pack | Biological Indicators (Spore Tests) | Visual / Mechanical Check |
|---|---|---|---|
| What It Verifies | Air removal & steam penetration | Microbial kill confirmation | Cycle parameters ran to completion |
| Result Turnaround | Immediate (minutes) | 24–48 hours (incubation) | Immediate (printout check) |
| Detects Vacuum Faults | Yes — Primary purpose | No | No |
| Required Frequency | Daily, before first load | Per load or weekly protocol | Every cycle (not true validation) |
| Standard Compliance | EN 285, ISO 11140-4 | ISO 11138 | None — Non-validation check |
Anywhere a Pre-Vacuum Sterilizer Runs Daily
Hospitals & CSSDs
Mandatory daily testing before the first cycle per NABH / JCI hospital protocols.
Dental Clinics
Smaller Class B pre-vacuum autoclaves require daily verification for surgical tools.
Pharma Manufacturing
cGMP-validated sterilization protocols under Schedule M and FDA requirements.
Medical Devices
Routine sterilizer checks supporting batch release and audit documentation.
Veterinary & Diagnostics
Surgical instrument sterilization following the same verification logic.
Multi-Site Networks
Hospital chains standardizing test protocols across multiple facilities.
Technical FAQs on Bowie-Dick Testing
What is a Bowie-Dick test pack used for?
It verifies that a pre-vacuum steam sterilizer is correctly removing air before steam penetration—run daily, before the first load of the day, to confirm sterilizer mechanical performance.
Are Bowie-Dick test packs reusable?
The chemical indicator sheet is always single-use. In reusable system holders, only the outer casing is reused—a fresh indicator sheet is inserted for every test.
What does a failed result mean?
A patchy or incomplete color change indicates air was trapped inside the chamber—check the vacuum pump, door seal gasket, or steam supply before running load processing.
How is this different from a biological indicator?
Bowie-Dick checks sterilizer mechanical air removal in minutes. Biological indicators test actual microbial kill after 24–48 hours of incubation. Most compliant facilities require both.
How often should a Bowie-Dick test be performed?
Daily, before the first load of the day—and after any sterilizer repair, relocation, or extended downtime.
Does it work on all sterilizer types?
No. It is specifically designed for pre-vacuum (Class B) steam autoclaves. Gravity-displacement sterilizers use a different air-removal mechanism and require different test indicators.
